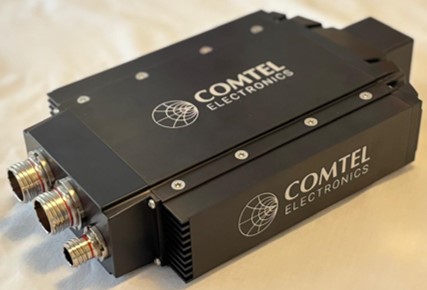

VPX 3U 1+1Slot Small Form Factor Chassis (SFF) with integral cooling
Product Type:
VPX/open VPX
Slots:
2
Cooling:
Passive
Power:
DC
ABOUT THE PRODUCT
The Comtel 3U Small Form Factor (SFF) Sub-System is low-cost, light-weight and scalable; primarily aimed at the UAV, Helicopter and Military Vehicle market.
The system features a novel modular approach utilising a common extrusion for the enclosure. This version includes integrated cooling to allow increased power and independent cooling.
This SFF System is also available as a Com-Express System.
- 2-Slot 3U VPX Sub-System
- 1x PSU (VITA62)
- 1x Payload (VITA48.2)
- 1.0″ Pitch
- Customisable Frton Panel I/O
- Backplane with Comtel’s high-speed AirPlane technology for 25 GBps per differntial pair is available
- SOSA aligned
- Short Lead-Time
- IP68 sealed
- Low-Cost
- Light- weight
- Scalable
- Integrated Cooling Systems
features
Card Slots
- Slot count: 2; (1x Payload + 1x PSU)
- Pitch: 1.0”
- VITA 48 Compliant
- Scalable: Other slot counts are available (see further SFF Datasheets)
Backplane
- Custom on request
- High Speed Air-/-Plane® technology for 25Gps per differential Pair
- VITA 62 PSU slot
- VITA 66 & 67 available
- SOSA aligned
Cooling
- Conduction and integrated Fan
Power
- Total power: 115W at 55°C
- Power input 28VDC
* Depending on configuration
Chassis
- Small Form Factor (extruded modules)
- Baseplate mounted
- Dimensions
- 160mm Wide
- 57mm High
- 268mm Long
- Weight: <2.6Kg
(excl Payload Boards)
Front Panel
- Customisable
